Newton Gateway

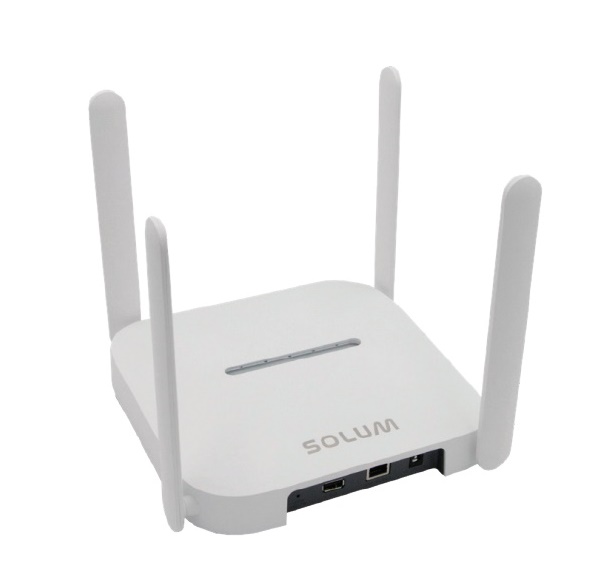

- Newton Gateway (Standard)
The main base station designed to cover large retail areas.
- Capacity: Up to 50,000 labels per gateway.
- Range: Communication radius of approximately 30 meters.
- Speed: Capable of updating 3,000 labels within 5 minutes.
- Interface: Connection via Ethernet (10/100/1000 Mbps).
- Power Supply: Supports PoE (Power over Ethernet) or external DC power (5-12V).
- Indicators: Front-facing LED system for network, server, and RF modem status (2.4 GHz).

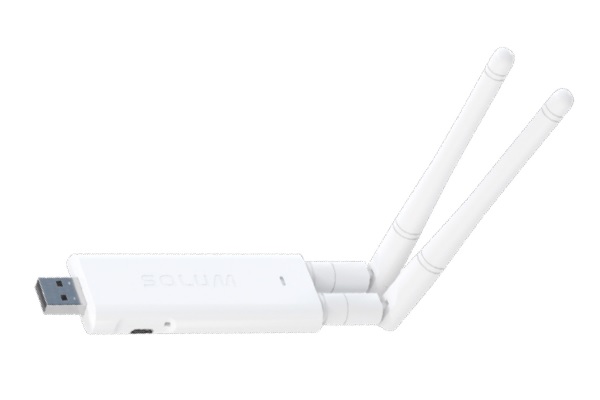

- Newton USB Gateway
A compact format (USB dongle) ideal for extending coverage or for smaller surfaces.
- Installation: Plugs directly into the USB port of a PC or a compatible Wi-Fi access point (such as Aruba or Meraki).
- Capacity: Also capable of managing up to 50,000 labels.
- Range: Slightly reduced to a 25-meter radius.
- Power Supply: Directly via USB port (5V, 0.5A).
Common Features
- Frequency: Uses the 2.4 GHz band with a proprietary protocol optimized for low label power consumption.
- Security: Supports HTTPS and MQTT protocols via TLS/SSL for Cloud communications.
